TENSTAR 6DOF 6 axis Rate Gyro Gravity Accelerometer Sensor Module BMI160 GY BMI160
TENSTAR BMI160 Motion Sensor delivers precise motion tracking in a compact format built for robotics and IoT across the USA, UK, Canada, and Australia. This TENSTAR 6DOF 6 axis Rate Gyro Gravity Accelerometer Sensor Module BMI160 GY BMI160, IIC I2C SPI communication protocol 3 5V integrates gyro and accelerometer in one smart solution. Moreover, the TENSTAR BMI160 Sensor Module ensures smooth data flow for embedded systems. Because it supports IIC I2C SPI communication protocol 3 5V, developers gain flexible integration. As a result, engineers achieve stable control, responsive balance, and accurate positioning in drones, robots, and smart devices.
TENSTAR BMI160 Sensor Module
The TENSTAR BMI160 Sensor Module features GY BMI160 6DOF 6 axis rate gyro gravity accelerometer technology for dynamic sensing. In addition, IIC I2C SPI communication protocol 3 5V guarantees seamless compatibility with Arduino and Raspberry Pi platforms. Working voltage: 3.2V~6V supports flexible power setups, while Current consumption: <1ma reduces energy load in portable projects. interface mode: 2.54 pitch pin header simplifies installation. therefore, designers create compact layouts faster. furthermore, accurate motion tracking for robotics and iot improves navigation logic. stable performance embedded control systems keeps industrial automation reliable under continuous workloads.
GY BMI160 6DOF 6 axis
GY BMI160 6DOF 6 axis rate gyro gravity accelerometer design enhances responsiveness in smart motion control. Acceleration optional scale: ±2g/±4g/±8g/±16g allows precise calibration. Gyro optional scale: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s expands rotation sensing range. Additionally, Accelerometer zero drift: ±40mg ensures stable baseline data. Gyro zero drift: ±10°/s improves angular accuracy. Because Programmable frequency: 25/32Hz~1600Hz adapts output rate, developers fine tune performance. Consequently, 6D detection and positioning improves spatial awareness. 16-bit data output delivers detailed motion metrics for professional embedded applications.
IIC I2C SPI communication protocol 3 5V
IIC I2C SPI communication protocol 3 5V empowers flexible connectivity in Europe and North America. Working voltage: 3.2V~6V matches common microcontrollers, while Current consumption: <1ma protects battery life. interface mode: 2.54 pitch pin header ensures quick soldering and secure mounting. moreover, built-in 1024 byte fifo stores motion data efficiently. 2 independent programmable interrupt generators enhance real time reaction. therefore, stable performance for embedded control systems remains consistent even under vibration. impact resistance: 10,000 gx 200μs increases durability in drones rc vehicles. working temperature: -40 ° c ~ +85 guarantees reliable outdoor operation.
Accurate motion tracking robotics IoT
Accurate motion tracking for robotics and IoT transforms navigation, gesture control, and stabilization systems. The TENSTAR BMI160 Sensor Module integrates GY BMI160 6DOF 6 axis rate gyro gravity accelerometer for smooth orientation sensing. Furthermore, IIC I2C SPI communication protocol 3 5V simplifies firmware integration. Acceleration optional scale: ±2g/±4g/±8g/±16g and Gyro optional scale: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s offer flexible configuration. As a result, 6D detection and positioning improves smart wearable tracking. Built-in 1024 byte FIFO and 16-bit data output enhance processing efficiency in advanced IoT gateways.
TENSTAR 6DOF 6 axis Rate Gyro Gravity Accelerometer Sensor Module BMI160 GY BMI160
Developers searching where to buy reliable motion modules choose TENSTAR 6DOF 6 axis Rate Gyro Gravity Accelerometer Sensor Module BMI160 GY BMI160, IIC I2C SPI communication protocol 3 5V for professional results. The TENSTAR BMI160 Motion Sensor maintains Working voltage: 3.2V~6V and low Current consumption: <1ma for efficient projects. additionally, accelerometer zero drift: ±40mg and gyro ±10° s supportstable algorithms. programmable frequency: 25 32hz~1600hz adaptsto high speed control loops. because impact resistance: 10,000 gx 200μs increases resilience, engineers deploy it in robotics across the uk usa.
Stable performance embedded systems
Stable performance for embedded control systems defines the TENSTAR BMI160 Sensor Module in industrial automation and smart devices. Working temperature: -40 ° C ~ +85 ° C supports harsh environments. Interface mode: 2.54 pitch pin header simplifies board integration. Therefore, developers in Canada and Australia order online with confidence. Competitive price, seasonal sale, and special promotion offers make it easy to shop now. GY BMI160 6DOF 6 axis rate gyro gravity accelerometer technology ensures Accurate motion tracking for robotics and IoT, while IIC I2C SPI communication protocol 3 5V keeps connectivity stable and future ready.
AliExpress Shopper –
Very useful. Fast shipping to Spain.
m***r –
Arrived on time, works perfectly, tested with an ESP32.
AliExpress Shopper –
The library is not very diverse, but…
It works well. I am satisfied.
P***i –
Parcel well packed and secure. Delivery on time. Work correctly as intended. Item exactly as described by the seller.
AliExpress Shopper –
Great seller
P***a –
As described, arrived earlier than expected.
B***n –
The first one i bought did not work. The second one i bought worked great. I think i paid less than $3 a piece for them so it’s ok.
V***v –
fast delivery
P***a –
As described, arrived earlier than expected.
AliExpress Shopper –
Has some offset on the axes, but works ok.
AliExpress Shopper –
Works perfectly, nothing to note.
s***i –
Perfect delivery to italy
J***n –
Foldable test
G***y –
It arrived very quickly to Germany. I haven’t connected it yet, but I think it will work fine. When I connect and test, I will write more.
AliExpress Shopper –
It worked as expected.
d***y –
A priori, the bag seems fine since I haven’t opened it yet. It remains to be tested, I hope it doesn’t disappoint me.
V***i –
Everything works perfectly, delivered quickly, the product is of high quality. Thank you to the seller for the fast delivery and excellent product quality.
A***a –
Everything as expected, fast delivery and all units working. Definitely recommended.
p***r –
It works perfectly. I left the plate dirty due to lack of isopropyl but still it delivers apparently accurate values and detects movements quickly, I need to test acceleration values even more thoroughly.
a***r –
Not tested but looks ok and goes into my small stock of useful parts.
K***d –
Not tested yet, but looks good.
T***h –
Item as described, recommended seller.
m***r –
Good value, fast shipping
F***r –
Excellent +++
S***r –
Worked like expected not doa 👍
AliExpress Shopper –
Excellent seller, shipping was fast the product is of excellent quality. I highly recommend it.
AliExpress Shopper –
Works well with esp. Has a bit of sensor noise though.
U***r –
I got the part partially working (lots of software issues to resolve) when i noticed that the bmi160 chip has a very rough surface and no markings, as if the markings were scraped off. See the attached photo. This is obviously not how bosch ships chips, so it brought the chip’s origins into question. As a result, i asked for and promptly received a refund. I am very pleased with the aliexpress return policy, which gives me confidence to try new vendors and products.

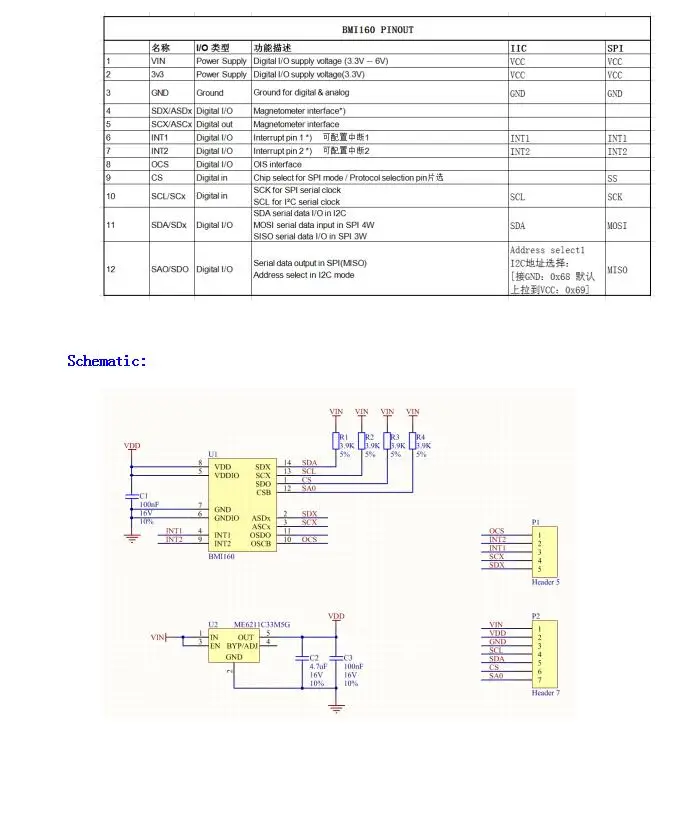

The product description/schematic has a few things to note. The schematic shows 3.9k pullups to vin, but the board actually has 10k pullups to 3.3v. The bmi160 supports 1.7-3.6v operation, so you should not drive the i2c pins with a 5v pullup. You must use a level translator when using a 5v mcu in order to operate the bmi160 within specification.
AliExpress Shopper –
It arrived quickly. I haven’t checked it yet, I hope it works.
P***h –
I placed an order with various items, unfortunately this BMI 160 was not included, I am disappointed because it’s not the first time this has happened.
a***r –
Perfectly compliant, received very quickly in France.
Not tested yet.
c***r –
Satisfied.
E***i –
This product is of high quality, and the seller provides excellent support. Highly recommended.
R***w –
Good quality, fast shipping and reasonable price. I recommend
B***e –
Good.
E***Z –
I haven’t tried it but I’m sure it will be perfect, thank you.
AliExpress Shopper –
Nice
P***r –
Good quality, perfect for slime VR DIY
AliExpress Shopper –
Arrived intact, excellent workmanship, well packaged. Haven’t tested its functionality yet.
A***n –
It is exactly as described. It’s a good value for money. . It was shipped very quickly.
O***k –
Good
L***i –
Ok.
S***r –
Love the form factor. Its tiny sensor and great for mini projects. . Ideal for small hobby projects. Delivery took some time almost 3 weeks but worth the wait. The price is very affordable.
A***K –
Quickly received but not tested yet. Seems to be good quality product. Thank you
K***r –
Looks good. Not tested yet.
J***y –
Very good product, thank you very much
H***v –
The product is of good quality and fully matches the description. I recommend the store.
AliExpress Shopper –
Thank you very much, gladly again.
J***o –
The product arrived within the stated timeframe and appears to be of good quality. I haven’t tested it yet.
b***r –
Arrived ok, in good time. Thanks
AliExpress Shopper –
Delivered quickly and well packed. Looks as described.
AliExpress Shopper –
Great seller
M***i –
Interesting module.
AliExpress Shopper –
everything is fine.
O***O –
Clean and neat
AliExpress Shopper –
Good alternative for mpu6050.
M***I –
not yet tested but seems correct,
J***k –
Ok
AliExpress Shopper –
Items well received but still waiting for other components to run and test them.
I’ll update my review when i test them.
V***i –
not tested yet, but seems OK
M***k –
I like using this product or item!
Y***i –
High quality device.
g***r –
Ok
A***v –
Arrived intact in 10 days
m***r –
Very nice product
j***n –
Arrived quick.
AliExpress Shopper –
Tested 10 of the 20 imus so far, all of them work properly with slimevr.
D***n –
Working well, fast delivery well packed.
I will probably buy more from this seller now when
I have tested them..
m***r –
Very good product
Z***e –
Good
AliExpress Shopper –
Working
E***i –
Everything is okay.
AliExpress Shopper –
Good sensors, I had no issues and they are working perfectly.
AliExpress Shopper –
It came with problems, the accelerometers are fine, but the gyroscopes generate uncontrolled values. I tried several libraries and adjustments at the startup of the registers and nothing worked. I will not request a refund because of the accelerometers that are working.
n***s –
All good
D***S –
Accurate description. Looks fine!
V***i –
Excellent, fast shipping and i received what i ordered.
AliExpress Shopper –
Great item
g***i –
It has been seized by customs.
D***U –
Received quickly but not yet tested.
